Solar Battery Series：12V50Ah Parameter

SP SERIES/6-CNF-50 12V50AH

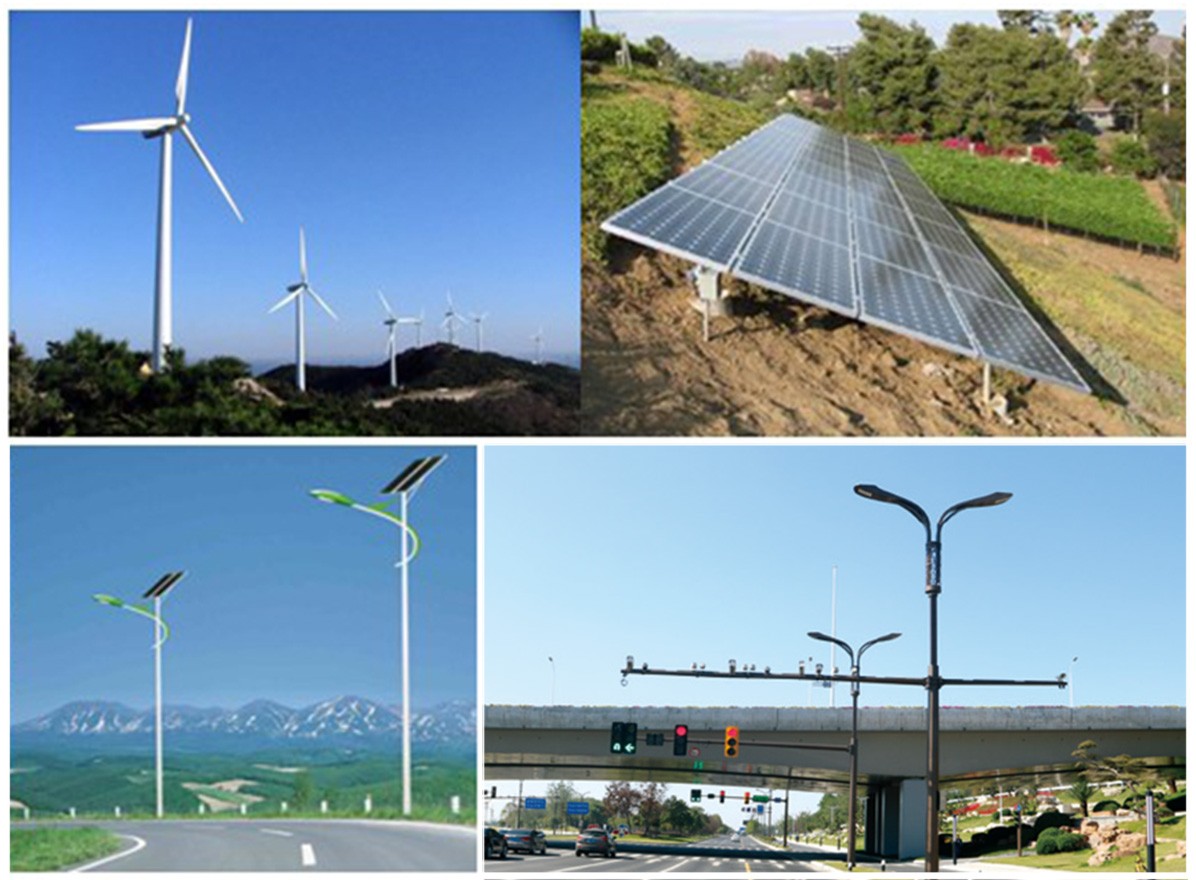

Applications

▪ Solar system and Wind system

▪ Solar street light and solar garden light

▪ Emergency lighting equipment

▪ Fire alarm and security systems

▪ Telecommunication equipment

▪ Electric equipment and telemeter equipment

Battery Model 6-CNFJ-50/12V50Ah
capacity (25 ℃) 10Hr(5A, 1.75V) 5Hr (9.3A, 1.75V) 3Hr(7.08A, 1.75V) 1Hr(30.0A, 1.70V)
50Ah 46.5Ah 42.5Ah 30Ah
Dimensions Length Width Height Total Height
266mm 165mm 169mm 169mm
Approx Weight 15.00KG+5%
Internal Resistance 7.1mΩ
Self Discharge ≤2% per month (25℃)
Charge Voltage 25 ℃ Cycle Use Float Use
14.2V(-24mV/℃), max charge current: 7.5A 13.5V(-18mv/℃)



SP SERIES/6‐CNF‐50 12V50AH

General Features

• Wide operating temperature range from ‐25°C to 45°C

• Sealed and maintenance free operation

• Low self‐discharge rate and long shelf life (9 months at 25°C)

• ABS containers and covers

• No memory effect, thick flat plate with high Tin low Calcium alloy

• Absorptive Glass Mat Technology (AGM System)

• Safety valve installation for explosion proof

• Long Service Life, Float or Cyclic

Constant Current Discharge Data (25℃, A)
End Voltage (V/cell) 5min 10min 15min 20min 30min 45min 1h 1.5h 2h 3h 5h 10h 20h
1.60 166.5 118.0 90.5 74.0 55.0 40.0 31.75 23.65 18.65 13.4 8.85 4.8 2.565
1.65 157.0 113.5 87.5 72.0 53.5 39.0 30.85 23.25 18.45 13.25 8.7 4.75 2.55
1.70 146.0 108.0 84.5 70.15 52.0 38.0 30.0 22.8 18.1 13.1 8.6 4.7 2.525
1.75 136.0 100.5 81.0 77.0 50.5 37.0 29.35 22.5 17.65 12.85 8.5 4.65 2.5
1.80 118.5 92.0 74.25 64.5 48.5 36.25 28.55 21.75 17.25 12.6 8.3 4.55 2.45

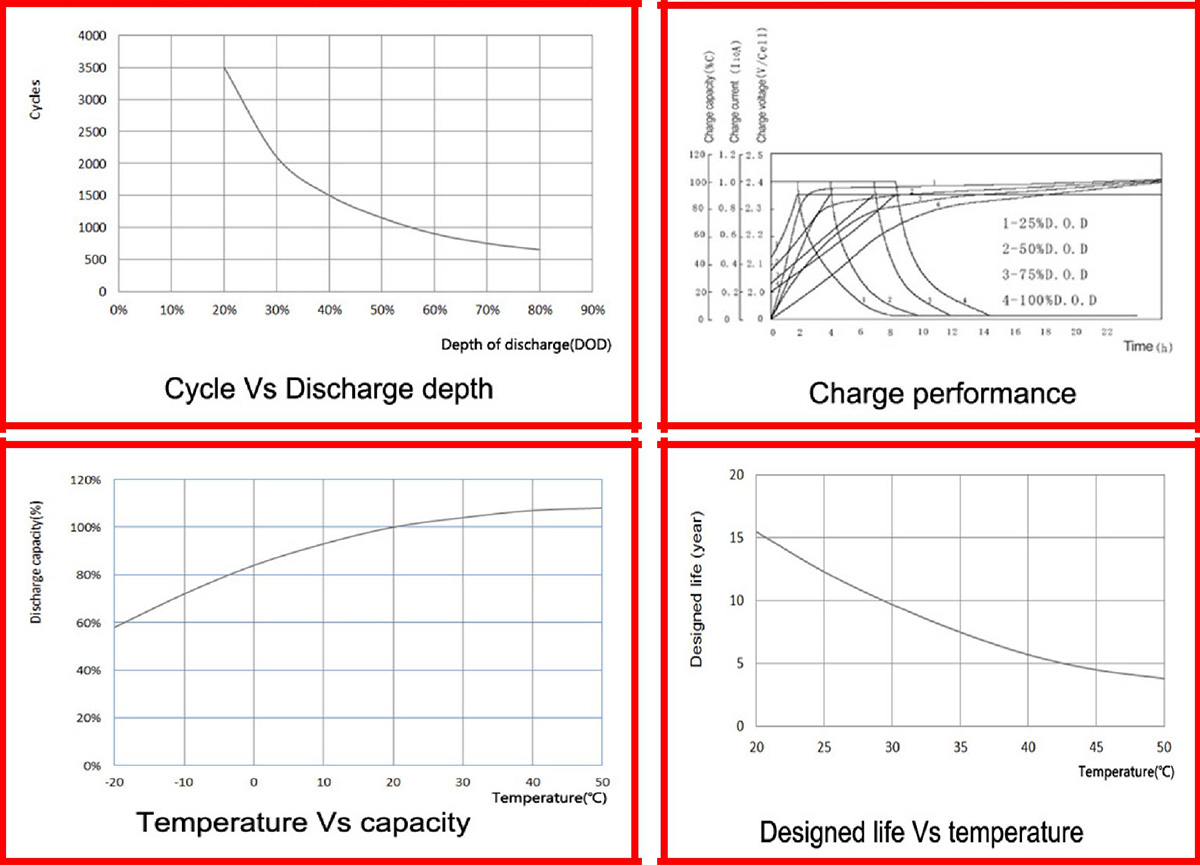

Performance Curve
