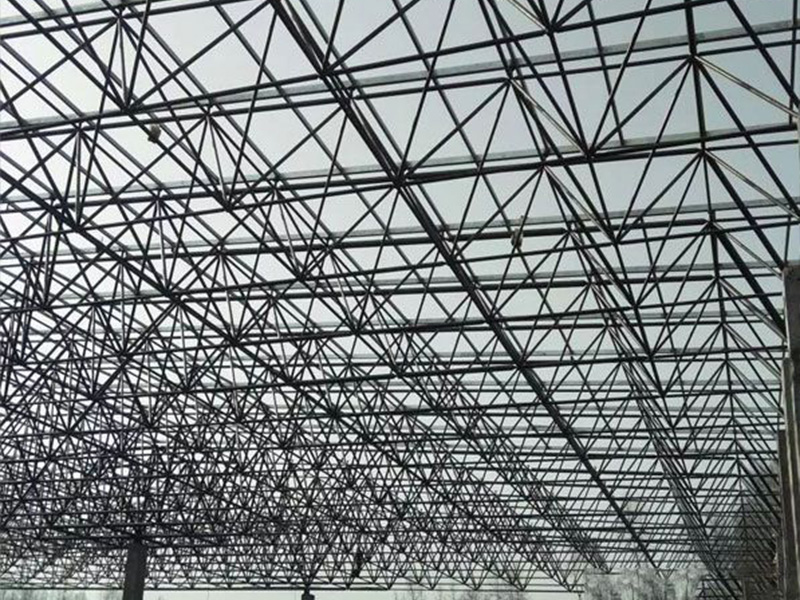

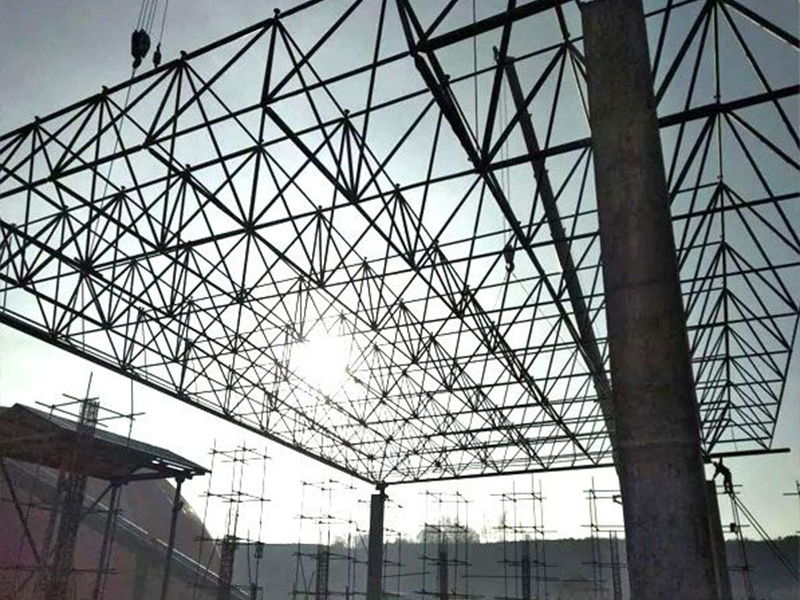

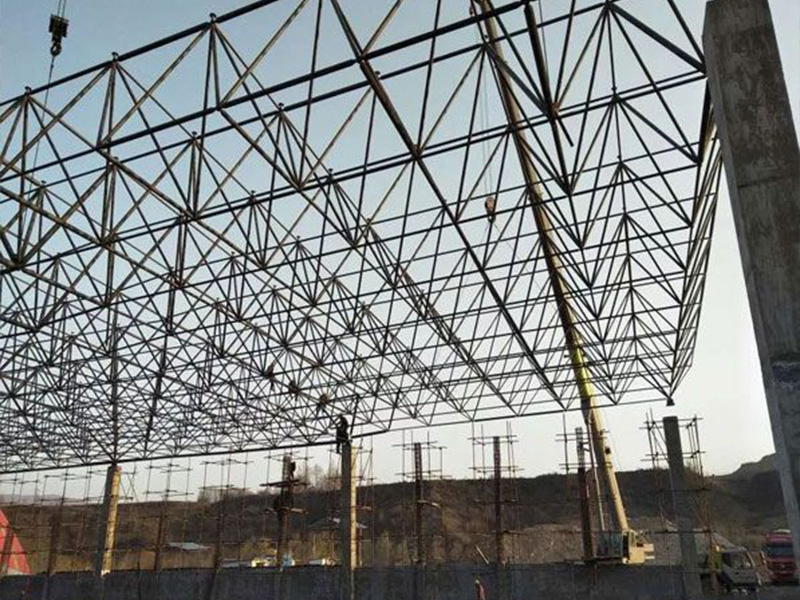

Bulk Storage - Dry Clinker Steel Space Frame Shed

The clinker storage shed is mainly used to store the clinker produced when the price of energy such as coal and electricity is low and to provide clinker when the demand for cement is uneven or relatively low. The above characteristics determine that the clinker winter storage shed must store a large amount; the steel space frame structure has the following advantages:

(1) Space steel structure, with high rigidity and small deformation, is conducive to the design of support columns and foundations: considering the height of stacking materials and the clear height requirements for unloading, the height of support columns is generally above 12m; the upper part adopts steel structures, which belong to the space Steel structure with high rigidity, small deformation under external load, and small bending moment on the support column, creating good conditions for the optimal design of the support column and foundation.

(2) The steel consumption per unit area of the space steel structure is small, and the economy is good: the space frame support points are set reasonably, the steel consumption per unit area of the steel structure is small, the project cost can be reduced, and the economy is good; At the same time, due to the small self-weight, the corresponding earthquake action effect is small, which is beneficial to the design of supporting columns and foundations.
