Technical Advantages

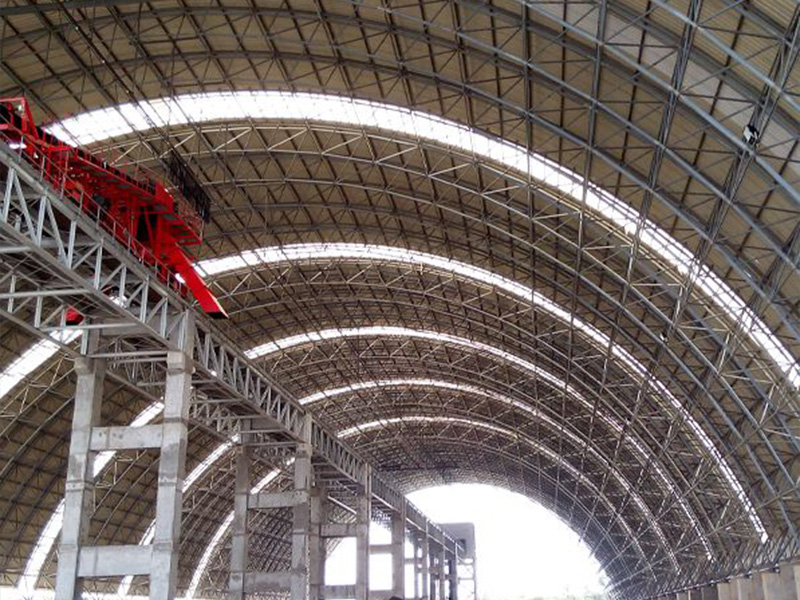

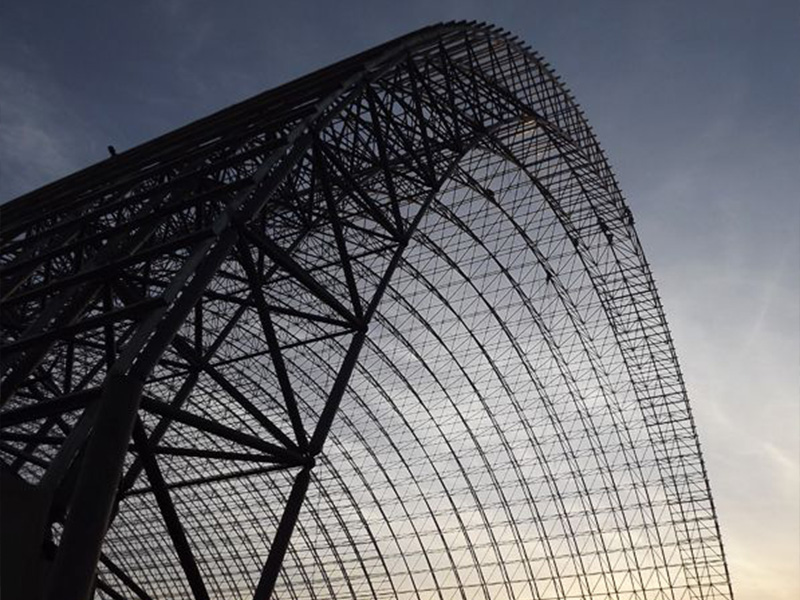

The space frame is square pyramid bolt ball node barrel shell, the bearing style is bottom chord column point to support, totally 52 column points. The bottom of the coal storage space frame is reinforcement concrete foundation, the upper chord is about 3.5mx3.546m，bottom is about 3.5mx3.293m，thickness of the space frame is 2.5m.
The roof purlin- cold pressed C-shaped steel, the roof panel-color painted pressed steel sheet.
Product specifications
| Structure Type | Light Steel |
| Application | Space Frame Coal storage |
| Design Standard | GB |
| Span | 61m |
| Height | 25.957m |
| Foundation Height | 4.5m |
| Wind Zone | 250kph |
| Seismic Zone | 4(Z=0.4) |
| Certificates | ISO, CE, SGS |
| Steel Material | Q235B/Q355B，45#，40Cr |
| Surface Treatment | Anti-rust treatment with epoxy zinc rich primer and PU finish. Roof color steel sheet. |
| Shipping | Shipped in 60days after the payment |
| Installation | Supervision installation |
| Warranty | 1 years |
| Packaging Details | Special package for space frame structure materials |
This steel space frame glass roof canopy is designed to provide reliable protection for outdoor hallways, walkways, and building entrances. Combining a durable steel structure with a transparent glass roof, it offers excellent weather resistance while creating a modern and elegant architectural appearance.
