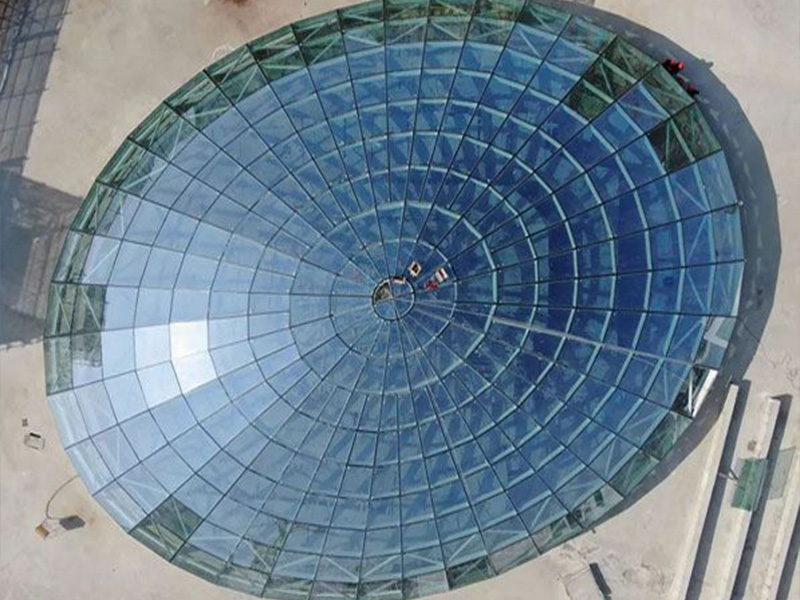

Glass Roof - Shopping Mall Skylight Steel Dome

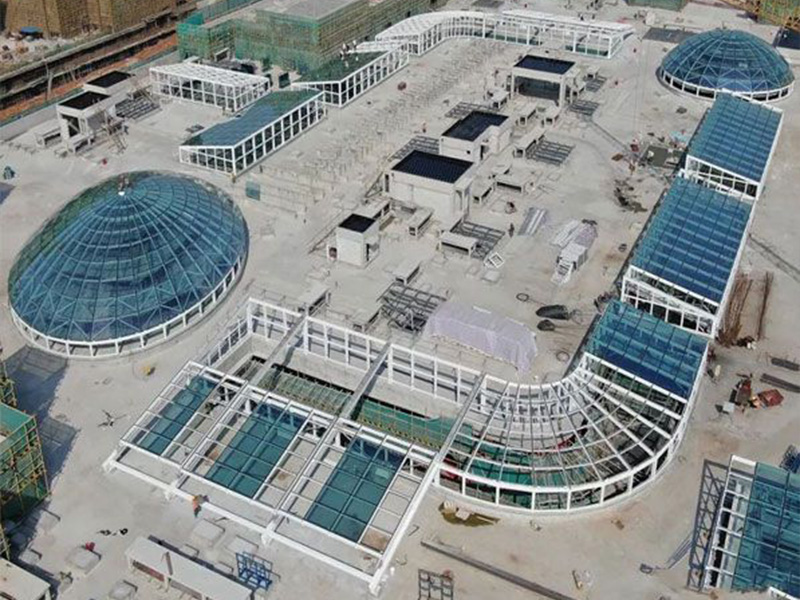

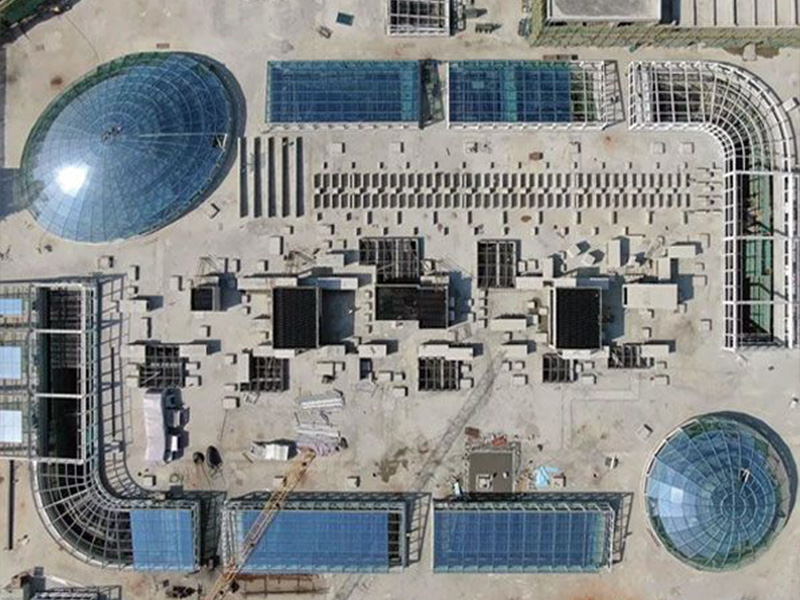

• The shopping mall includes 2 glass skylight dome roofs and several square glass atrium roof corridors;

• The main structure of the glass dome building roof is a steel structure, and the keel is made of aluminum alloy profiles；

• Surface material selection 8+1.52+8+12A+8 double silver LOW-E glass；

• The dome steel structure roofing is equipped with a fluorocarbon-sprayed aluminum alloy decorative frame；

• The highest building height of the dome is 35m, the distance from the ground of the hall is 27.5m, and the minimum linear distance between the center of the dome and the edge of the building is 50m.

A shopping center project is a large-scale commercial complex project integrating a shopping center and a commercial street. The planned total land area is 34812.78 square meters, and the total construction area is 112517.38 square meters.
