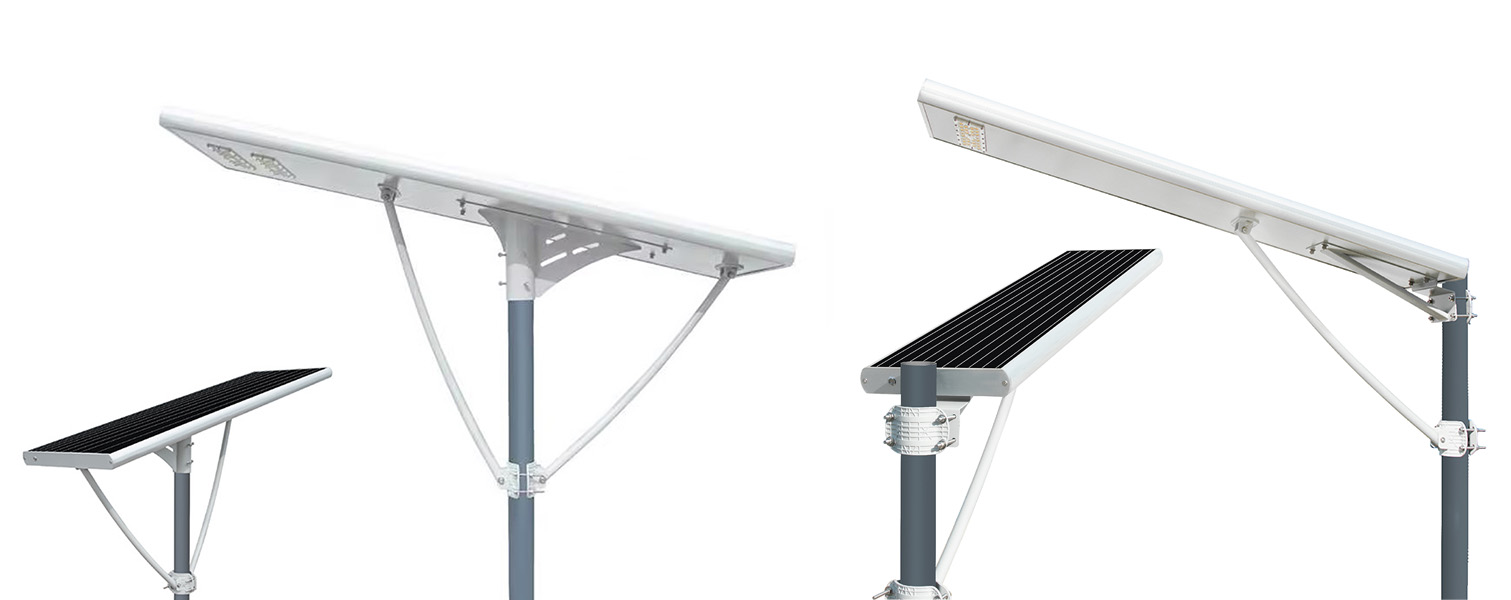

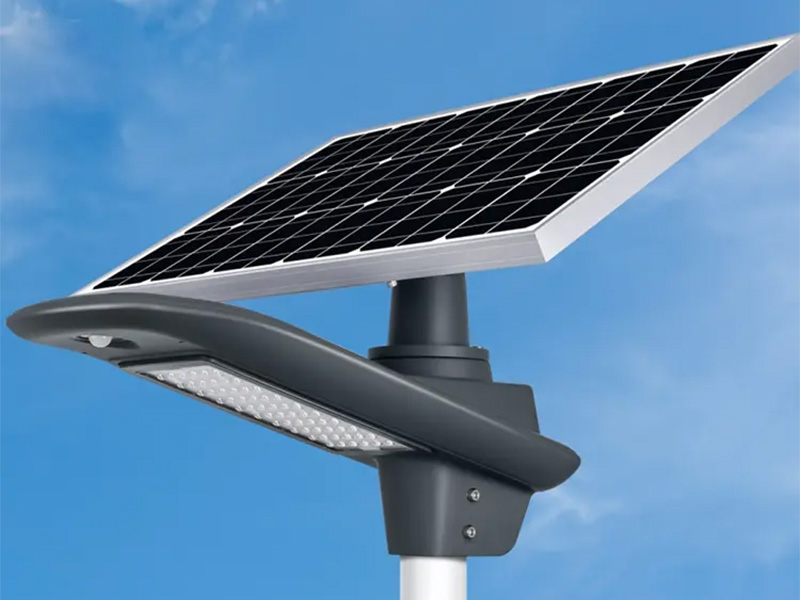

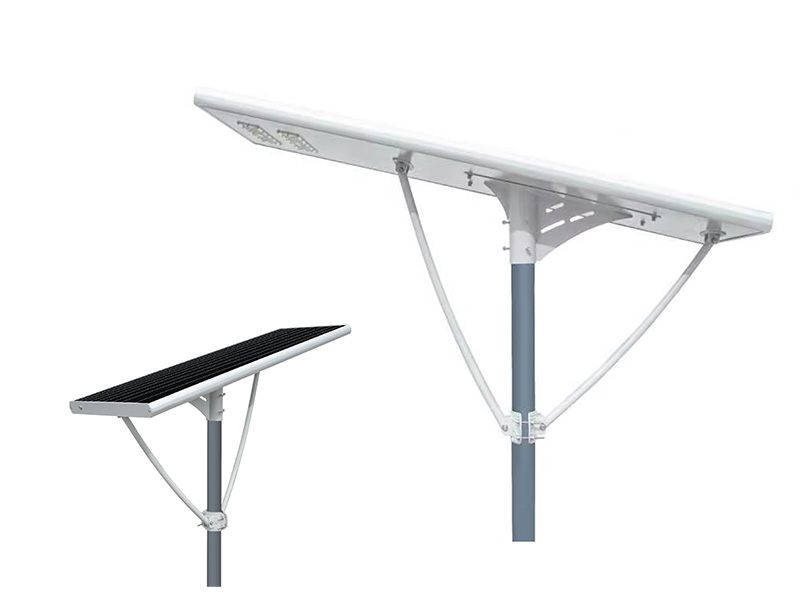

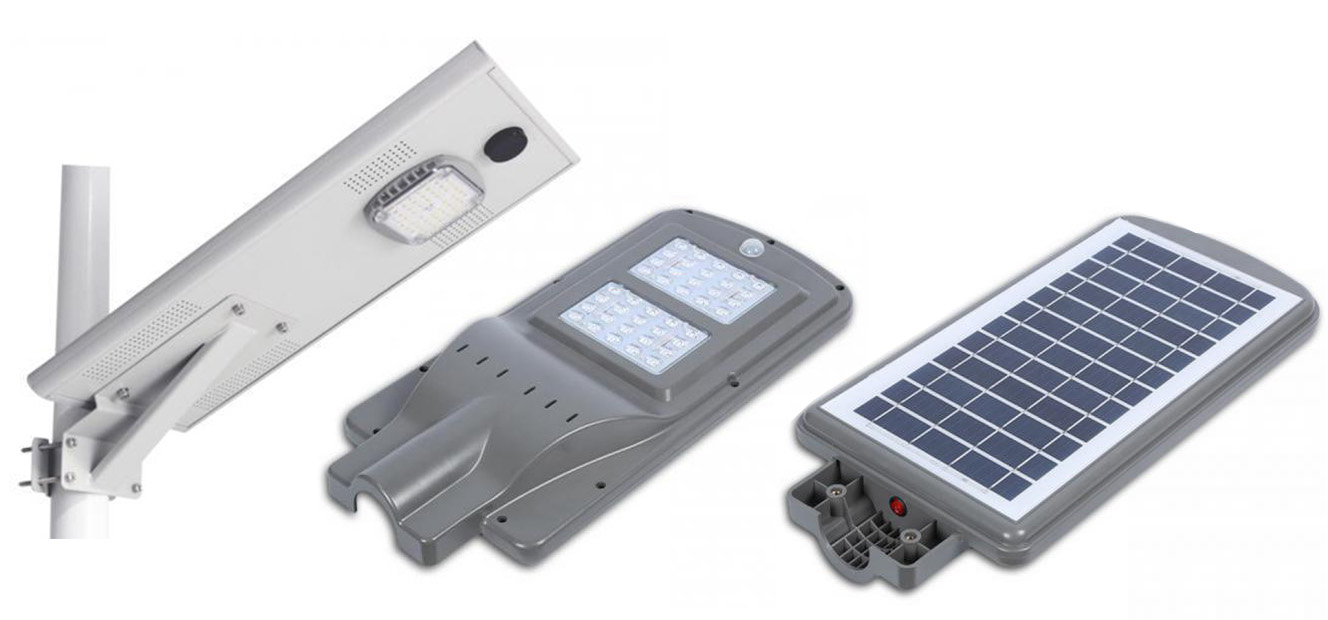

All-In-One Solar Street Light

The solar street lamp system adopts large-capacity lithium batteries (with a lifespan of 5 to 8 years), and integrates the controller and battery in an integrated design, enabling rapid installation without wiring. The pole-mounted battery layout shortens the power supply distance, reduces energy loss, and enhances anti-theft security (compared with underground installation schemes), and is specially optimized for energy-saving and environmentally friendly road lighting.

Battery technology

• 5 to 8 years of service life (twice that of traditional gel batteries)

• The discharge efficiency is stable, avoiding the problem of power shortage at low temperatures in traditional batteries

Integrated integrated design

• Lithium battery + controller pre-installed and integrated

• Zero complex wiring (no risk of calculation errors in wiring length)

• On-site installation time is reduced by 50% (measured)

Pole-mounted anti-theft structure

• The battery is installed at a high position on the lamp post

→ Reduce line loss and improve power supply efficiency

→ Increase the difficulty of theft (compared with underground burial)

Accessory schematic diagram

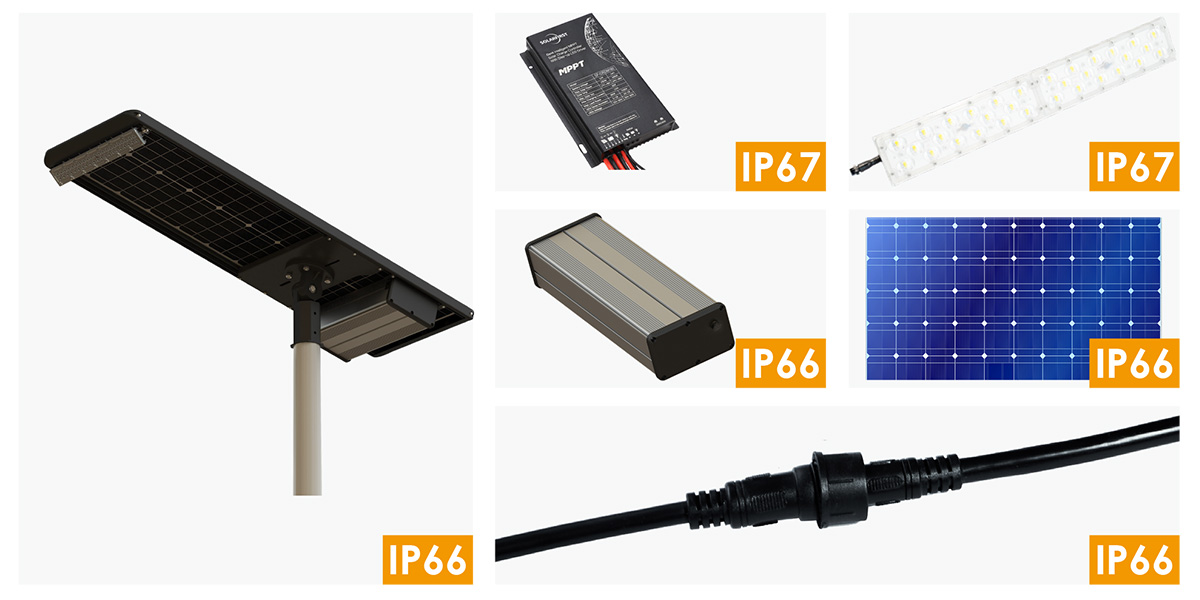

Outstanding Performance in Rain and Dust with lP66 Rating

The Solar Street Light system has an IP66 waterproof rating, with all electronic components—solar panel, lithium battery box, solar controller, and LED module—rated IP66 or IP67, ensuring reliable operation in heavy rain and humid environments.

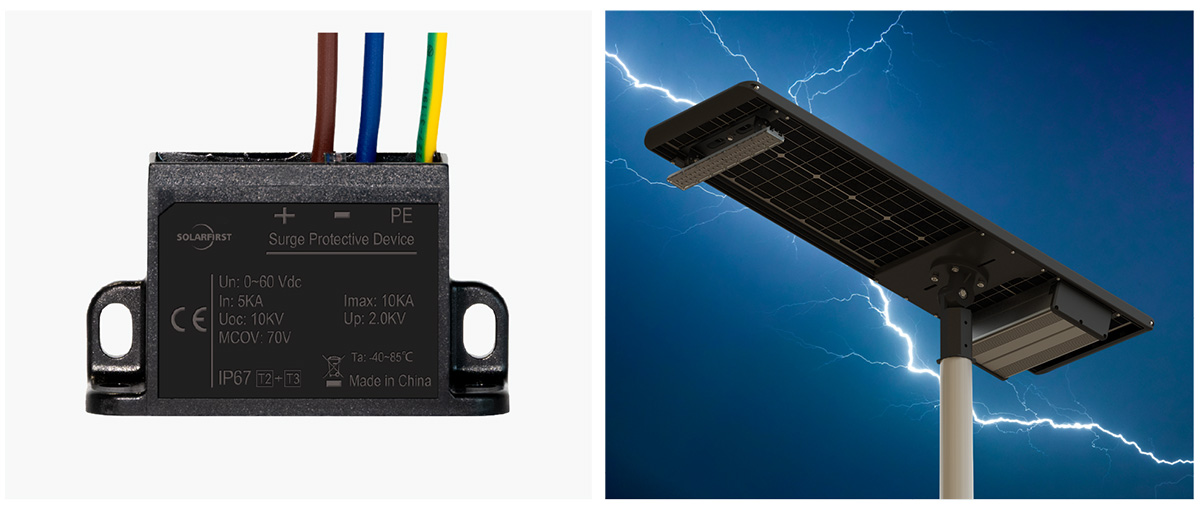

10kV Thunder Protection with SPD Device

In areas susceptible to lightning strikes, solar streetlights can be easily damaged. By incorporating an



additional SPD module, Solar Street Light can endure surges up to 10kV, significantly enhancing the system's lightning protection.

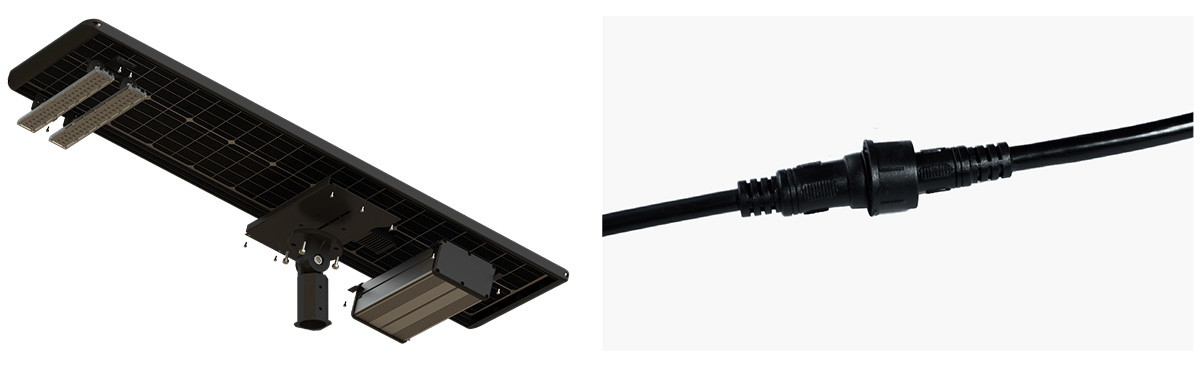

Easier Maintenance with Modular Design



By utilizing a modular design and quick-connect connectors, Solar Street Light enables the easy replacement of all

components—solar panels, batteries, and LED modules—by simply removing bolts and plugging in connectors, significantly simplifying maintenance.



Parameters

Part NO	BST-STL-20W-S02	BST-STL-30W-S02	BST-STL-60W-S02	BST-STL-80W-S02	BST-STL-100W-S02	BST-STL-120W-S02
Power	20W	30W	60W	80W	100W	120W
Size(mm)	L366*W135*H85	L366*W135*H89	L431*W160*H89	L431*W160*H89	L632*W215*H90	L632*W215*H90
Luminous Flux	2200-2400	3300-3600	6600-7200	8800-9600	11000-12000	13200-14400
Light distribution	140*70
CCT	2700-6500K
Color rendering index(CRI)	Ra>80
Light efficiency	110-120lm/W
LED chip	LUMILEDS LED chips
Solar Module	80W	80W	100W	100W	150W	180W
Solar panel life	25 years
Lithium iron phosphate battery	12V 65AH	12V 100AH	12V 100AH	12V 120AH	12V 150AH	12V 200AH
Housing color	Silvery grey
IPrate	IP65
Housing material	Excellent Aluminum +PC lens
Working temperature	-20°C~+50°C
LED Life span	50000 hours
Warranty	5years





Applicable Scenarios

Municipal road lighting (in areas without power grid)

Park/greenway landscape lighting

Rural road lighting project

Independent lighting for the factory area/campus



Packages& Shipping

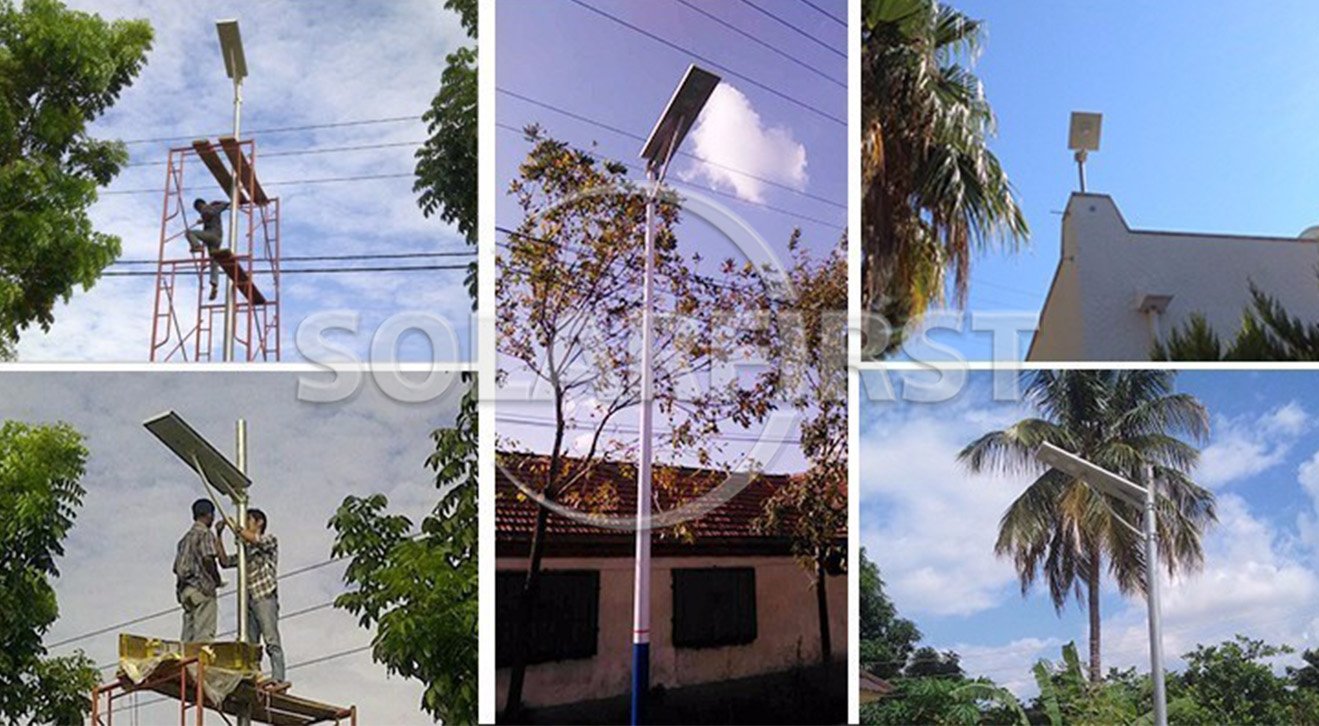

Solar First Project Reference

•
