Solar Ground Mount

Solar AC Pumping System

Product Description

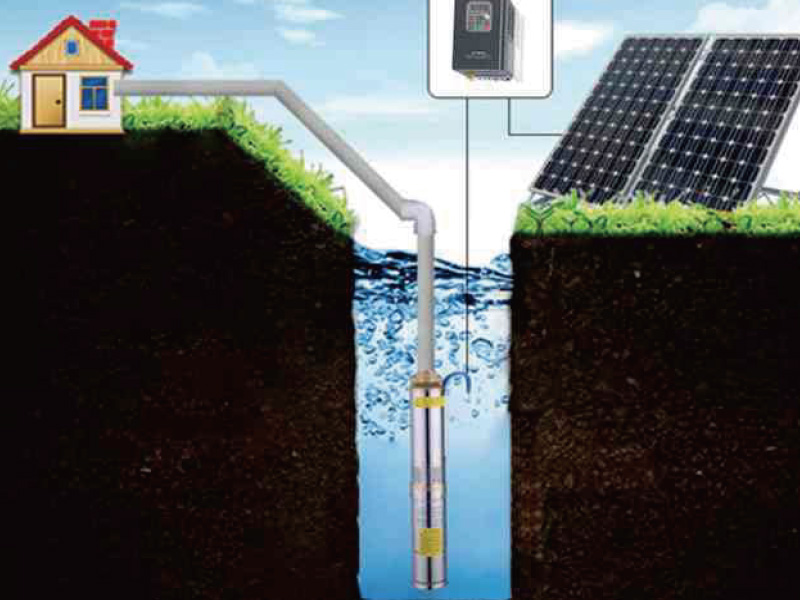

Ideal for remote locations beyond the reach of conventional power grids, the Solar First Solar AC Pumping System delivers a robust and efficient solution for all your water pumping needs. Engineered with integrated architecture, this system ensures quick installation, minimal maintenance, and low operational costs. Powered by solar modules and driven by AC technology, it reliably draws water from deep wells, making it the perfect solar water pump for deep well applications, as well as an excellent solar powered water pump for garden irrigation.



Whether supporting agricultural irrigation, providing drinking water for livestock, or supplying households, Solar First offers a clean, quiet, and sustainable alternative to traditional fuel-dependent or windmill pumps. With zero noise and no emissions, our system protects the environment while providing a dependable water source.



Key Features

• Integrated Structure: Easy to install and maintain with low operating costs

• Efficient & Safe Water Extraction: Ideal for deep well irrigation and potable water supply

• Zero-Pollution Operation: Silent, clean, and eco-friendly

• Strong Economic Value: Solves water supply challenges in areas with limited water and electricity





Parameters

Solar panel power 1800W 2400W 3400W 4500W 6000W 8500W 13500W 22500W 31550W 40800W
Solar panel voltage 210-450V 350-800V
Rated power of water pump 1100W 1500W 2200W 3000W 4000W 5500W 9000W 15000W 22000W 30000W
Rated voltage of water pump AC220V AC380V
Maximum lift of water pump 120m 110m 235m 120m 105m 220m 100m 160m 210m 245m
Maximum flow of water pump 3.8m³/h 5m³/h 10m³/h 18m³/h 10m³/h 53m³/h 75m³/h
Outer diameter of water pump 3 inch 4 inch 6 inch
Pump outlet diameter 1 inch 1.25 inch 1.5 inch 2 inch 1.5 inch 3 inch
Water pump material Stainless steel
Pump conveying medium Water
Photovoltaic mounting type Ground mounting





Industry Application Scenarios

Pumped for deep water

Water shortage and power shortage areas
