Solar DC Pumping System

Are you tired of relying on unstable power grids or expensive fuel for water pumping? Solar First introduces the Solar DC Pumping System, a comprehensive solar-powered water solution designed specifically for deep well extraction and garden irrigation. Whether for agricultural irrigation, livestock drinking, or household use, our system provides an efficient, reliable, and eco-friendly water supply anywhere under the sun.

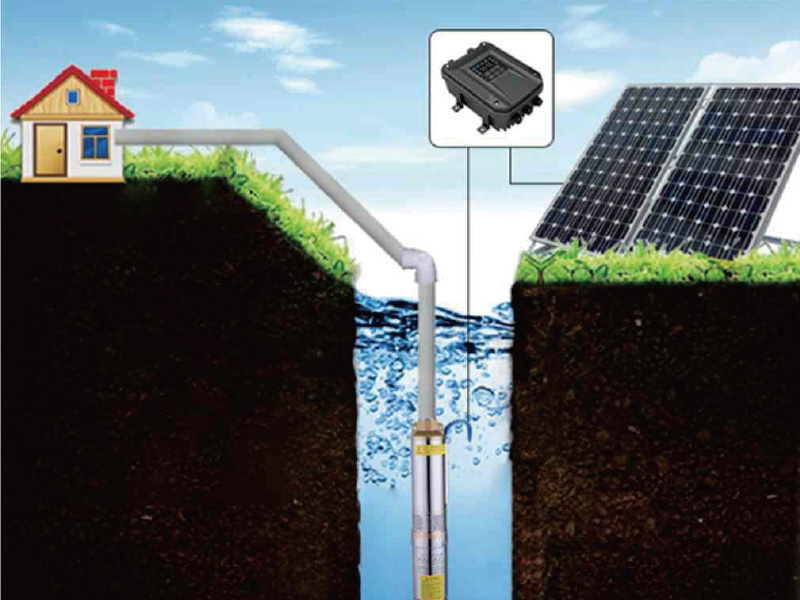

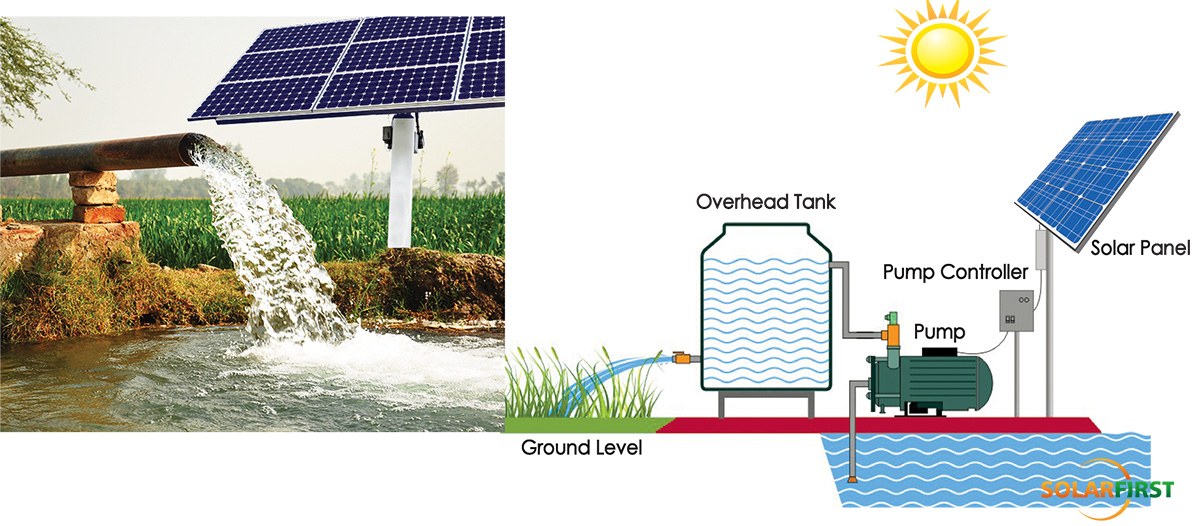

The heart of the system includes solar modules, a solar pump inverter, and a water pump – all seamlessly integrated for easy installation and low operating costs. Ideal for remote and off-grid areas, the Solar First system is an affordable one-time investment that saves you money from day one and continues to deliver returns year after year.

Core Features

• Integrated Design: Simple to install and maintain, with minimal operational costs

• Efficient & Reliable Performance: Provides consistent water extraction from deep wells, perfect for irrigation and drinking supply

• Eco-Friendly Operation: Zero noise, zero pollution, and 100% renewable energy powered

• Cost-Effective Solution: Drastically reduces water access costs in regions lacking water and electricity infrastructure

Parameters

Solar panel power	500W	800W	1000W	1500W
Solar panel voltage	42-100V			63-150V
Rated power of water pump	300W	550W	750W	1100W
Rated voltage of water pump	DC48V			DC72V
Maximum lift of water pump	35m		50m	72m
Maximum flow of water pump	3m³/h	3. 2m³/h	5m³/h
Outer diameter of water pump	3 inch
Pump outlet diameter	1 inch
Water pump material	Stainless steel
Pump conveying medium	Water
Photovoltaic mounting type	Ground mounting





Industry Application Scenarios

Pumped for deep water

Water shortage and power shortage areas



Packages& Shipping
