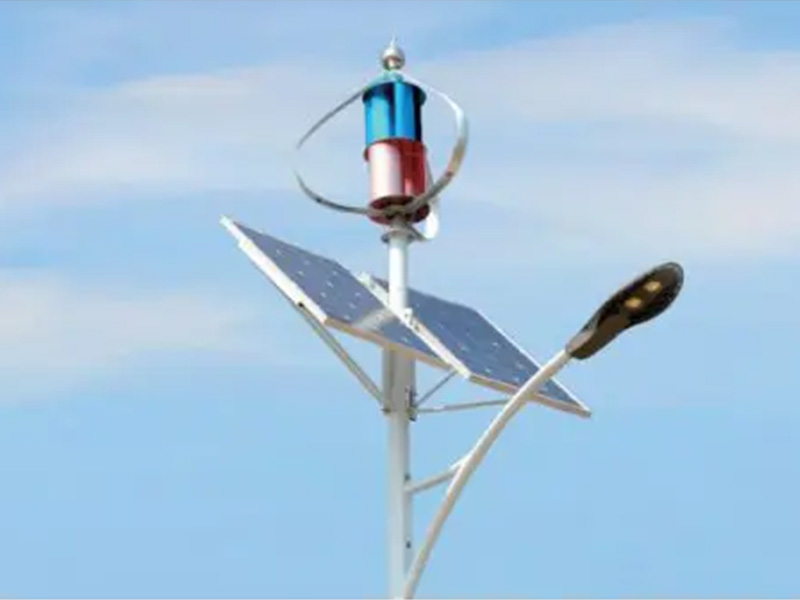

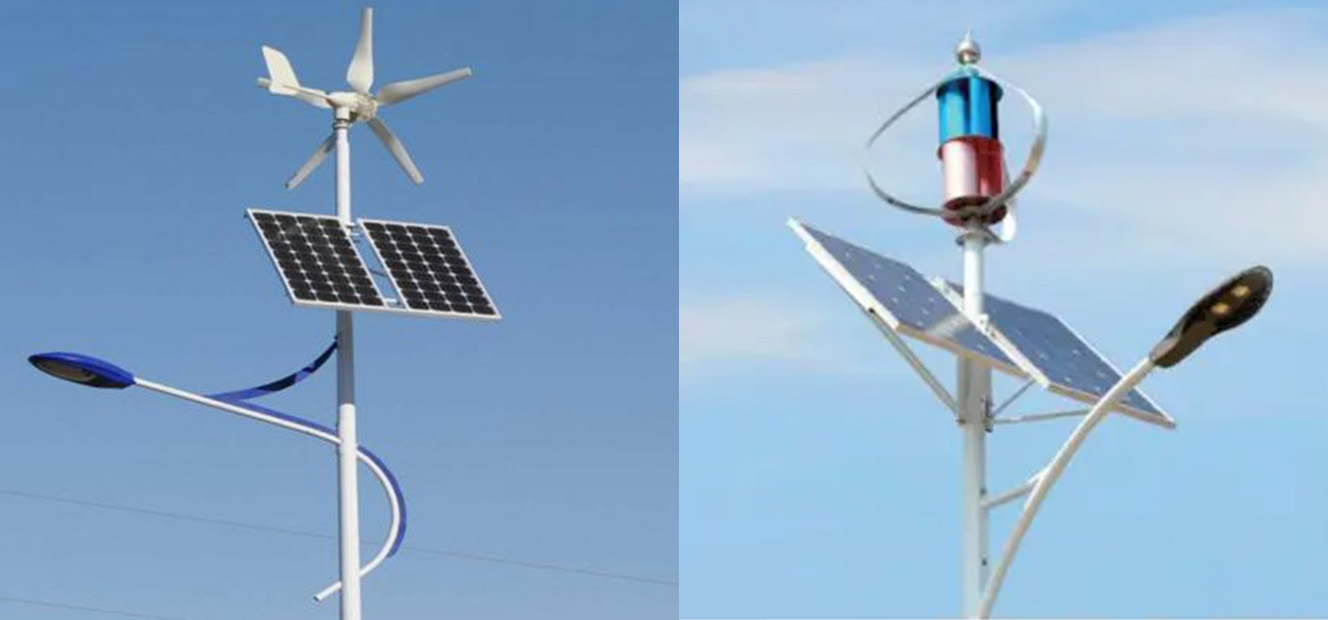

Wind-Solar Hybrid Street Light

The wind-solar hybrid solar street lamp system integrates dual energy inputs of photovoltaic panels and wind turbines, achieving three intelligent charging modes:

1. Pure light mode: When there is sunlight but no wind, the solar panels charge independently

2. Pure wind mode: When there is wind but no light, the wind turbine charges independently

3. Dual charging mode: Coordinated charging when both wind and solar power are excellent

Optimized specifically for areas with an average annual wind speed of ≥4m/s, it completely resolves the pain point of unstable power supply from a single energy source.

Energy redundancy design

• Single-day battery life without light: ≥3 nights (measured wind speed: 4m/s)

• Single-day windless endurance: ≥2 nights (measured sunlight duration: 4 hours)

Geographical adaptability

✔ Coastal high-wind area  ✔ Plateau strong-sunshine area  ✔ Monsoon climate zone

Installation benefits

• Zero cable laying: Save pipeline costs by 30-50 yuan per meter

• Modular hoisting: Single lamp construction ≤30 minutes

Accessory schematic diagram

Parameters

Horizontal axis wind turbine	200W	300W	400W	500W
Wind and solar hybrid controller	1SET
Battery capacity	12V/150Ah	12V/100Ahx2	12V/150Ahx2	12V/200Ahx2

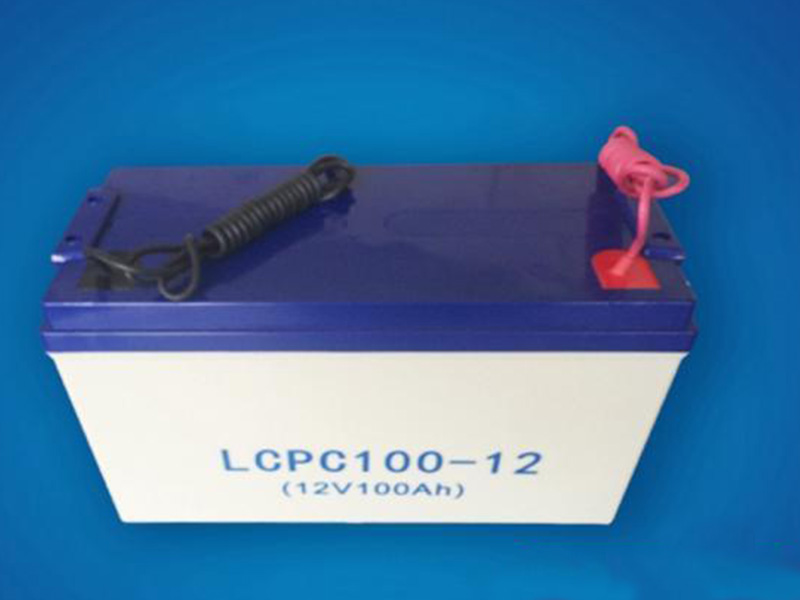

Battery Type	Lead-acid batteries(Gel)

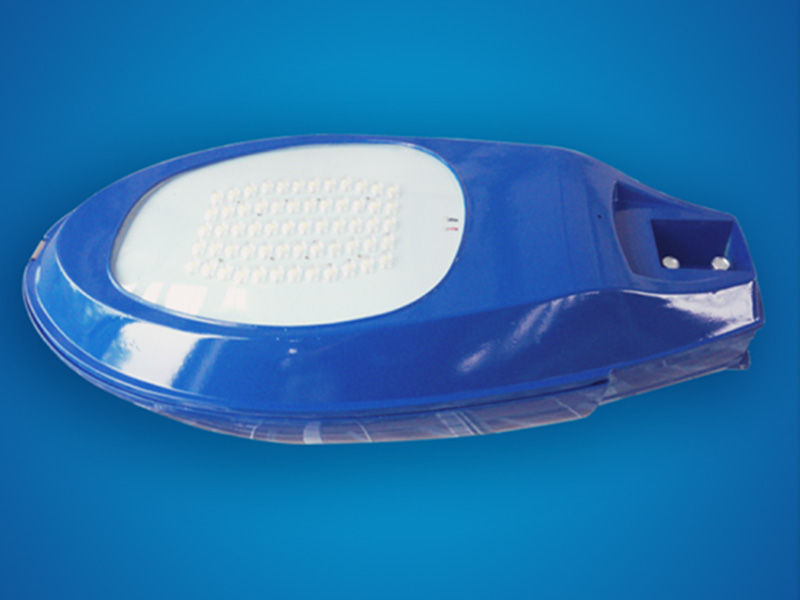

Main light power	40W	50W	80W	100W
Color temperature	7.0m4000K
Height of the whole lamp	7.0m	8.0m	8.0m	10.0m
Operating temperature	-20°C~55°C
Windproof strength	27m/s (up to force 10）
Rainy days	5~7 days





Applicable Scenarios

Rural road

Pastoral areas and grasslands

Islands and coastal areas

Mountain and plateau roads

Desert and Gobi areas
