Solar Garden Lights Outdoor

The SF solar garden lamp adopts microwave radar intelligent sensing technology, automatically adjusting its brightness (21W light source power) according to moving objects. It is equipped with an embedded microcomputer control system to achieve intelligent management of charging and discharging. Equipped with a 48W solar panel and a 12V/80Ah lead-acid battery, it ensures 5-7 days of continuous operation in rainy weather. The lamp body is 4.3 meters high and has passed the 10-level wind resistance certification (27m/s).

Intelligent sensing energy saving

• Microwave radar detection: Automatically sense moving objects within 20 meters

• Three-level brightness adjustment

    ▫ No one status: 30% brightness (standby)

    ▫ Pedestrian and vehicle approach: 100% brightness (lasting for 30 seconds)

    ▫ Late-night slot: Automatically switch to soft light mode

Efficient energy management

• 48W monocrystalline silicon solar panel (conversion efficiency ≥21%)

• 80Ah lead-acid energy storage battery (cycle life ≥800 times)

• Charge and discharge efficiency: > 92% (Intelligent power regulation technology)

Structural design

• Detachable lamp post: The split structure is convenient for transportation and installation

• Wind resistance level 10:27m/s wind pressure test (GB/T 35205)

• Operating temperature: -20°C to 55°C (applicable to both cold and tropical regions)

Accessory schematic diagram

Parameters

Solar panel power	48W±15%
Battery Type	Lead-acid batteries
Battery capacity	112V/80Ah
Total power of light source	21W
Main light color temperature	3000K~6000K
Applicable temperature range	20°C~55°C
Height of the whole lamp	4.3m
Windproof strength	27m/s (up to force 10)
Rainy days	5~7 Days

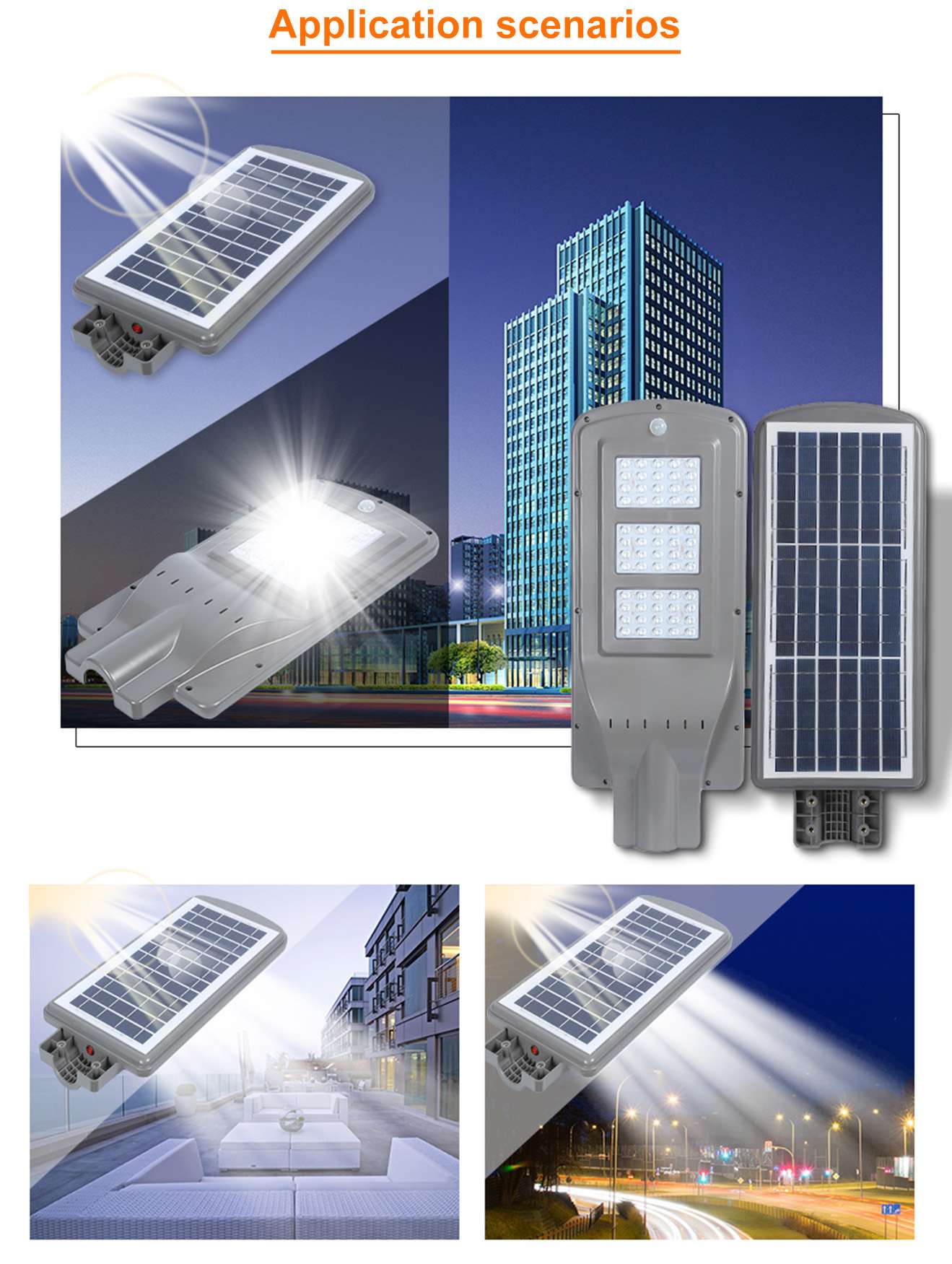

Applicable Scenarios

Rural road

Pastoral areas and grasslands

Islands and coastal areas

Mountain and plateau roads

Desert and Gobi areas



Packages& Shipping

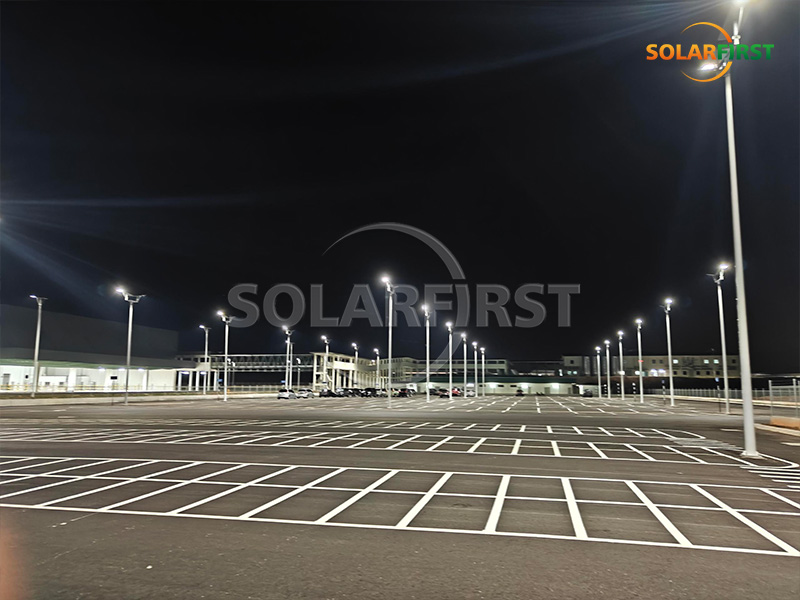

Solar First Project Reference

•
•
•





Related Knowledge Points
