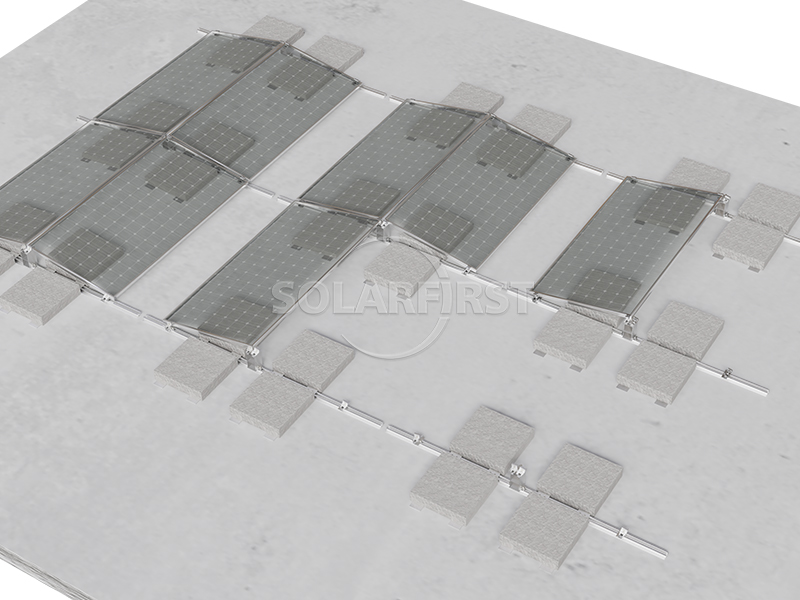

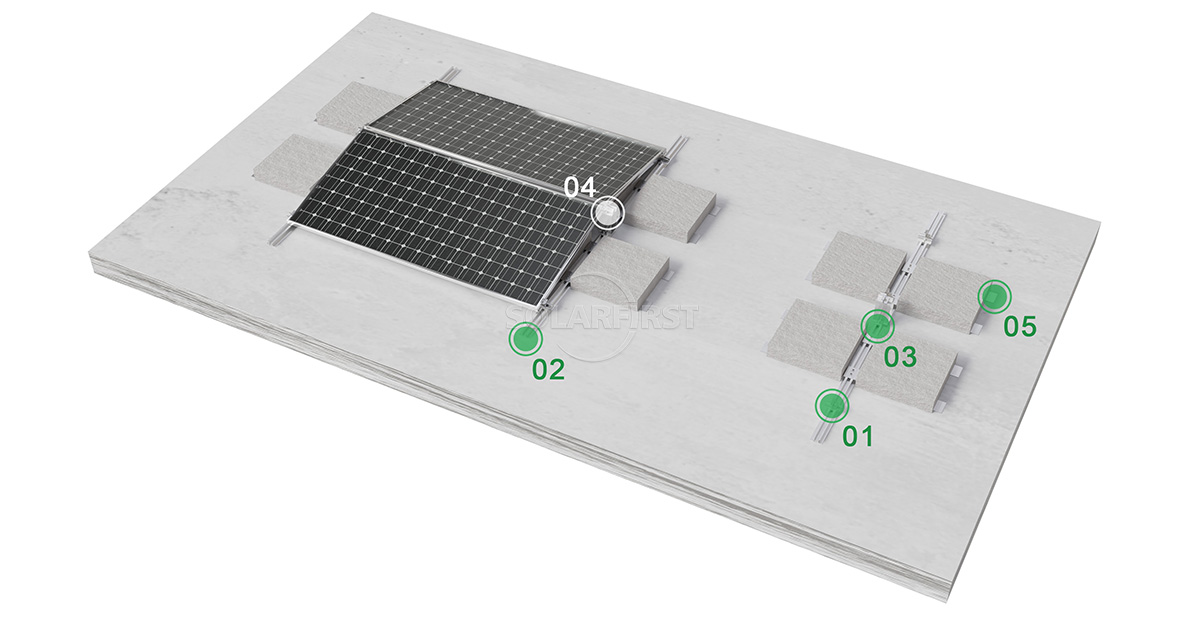

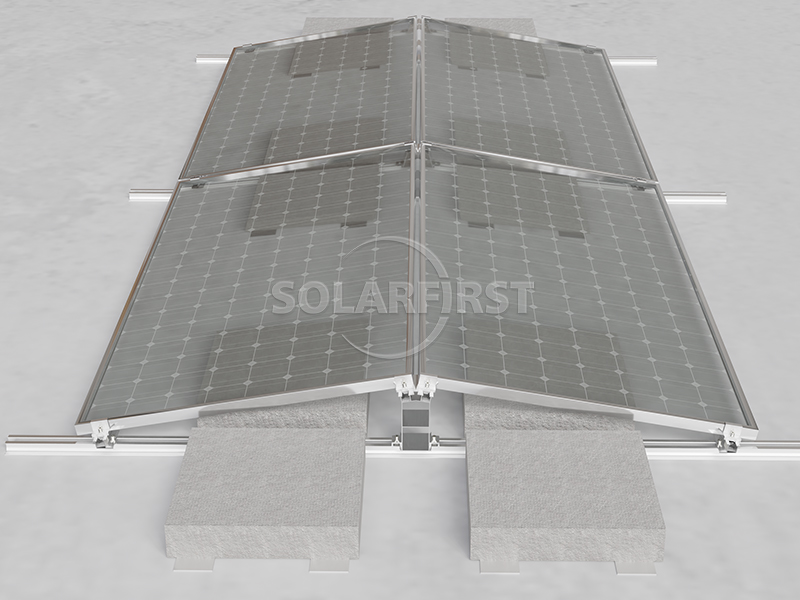

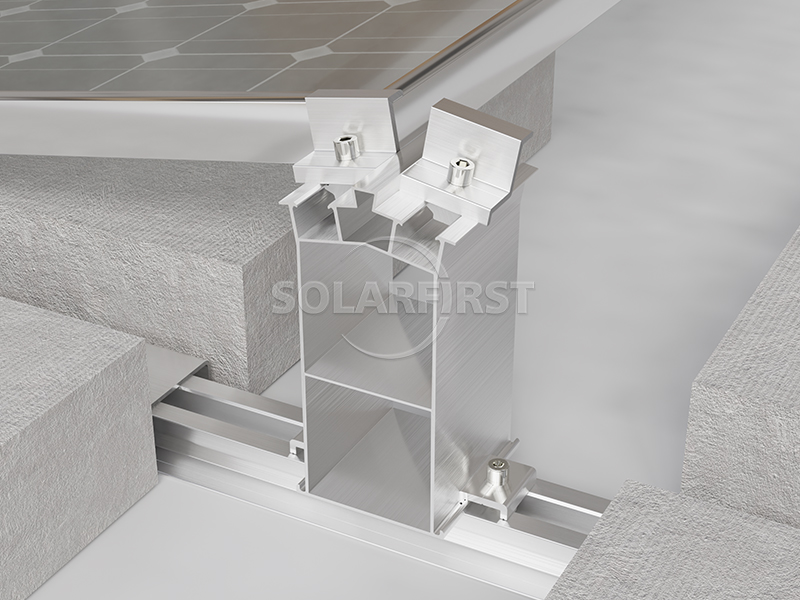

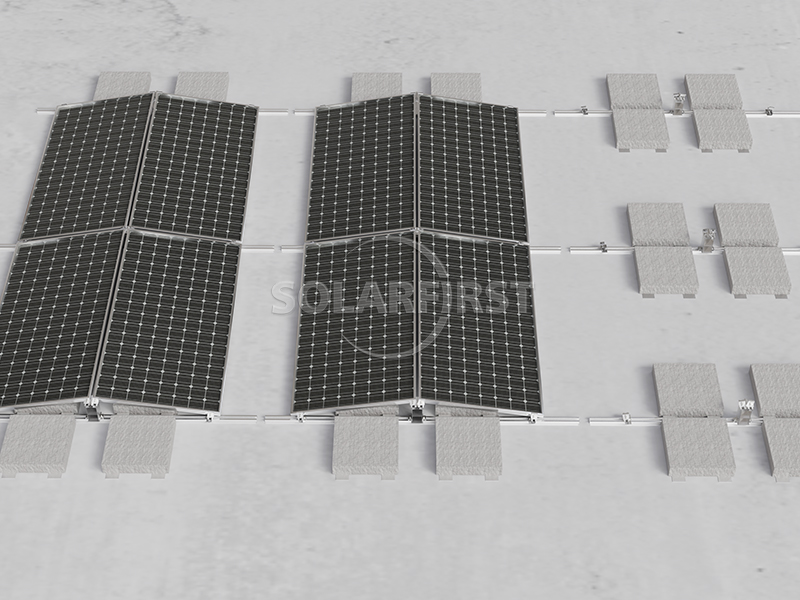

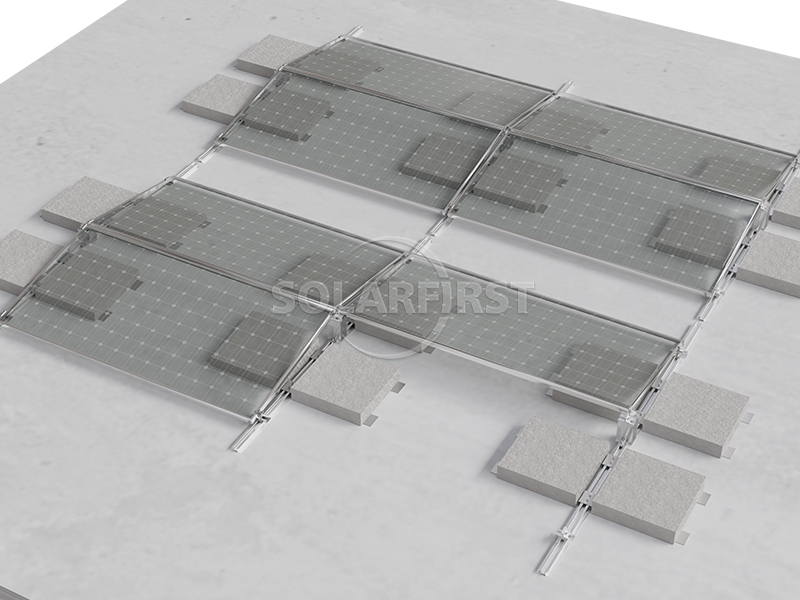

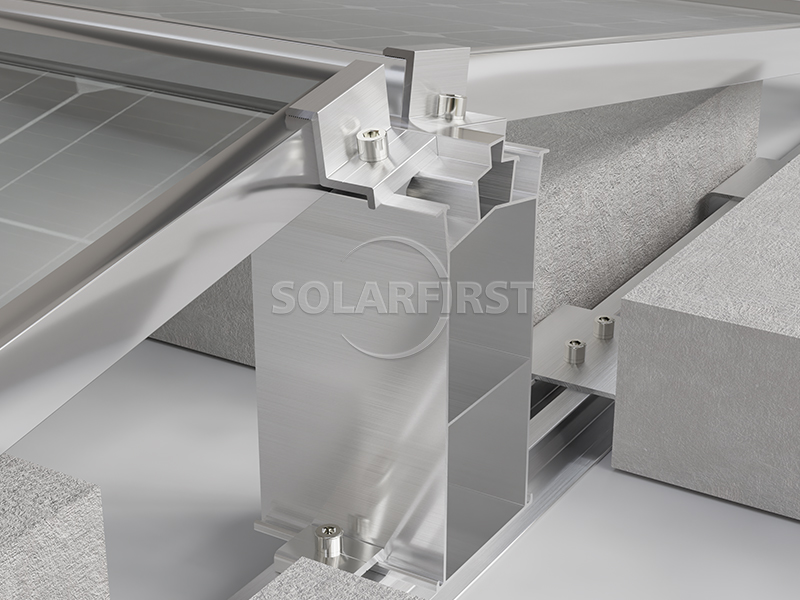

Solar Concrete Roof Mount - Symmetrical Ballasted Mount

In simple terms, a standing seam clamp is a "photovoltaic panel base connector" specifically designed for non-penetrating corrugated steel roofs. It is fixed to the standing seam of the roof by clamping, allowing the photovoltaic modules to be installed securely without drilling a single hole in the roof.

This product is a photovoltaic (PV) bracket accessory specifically designed for Klip-Lok (standing seam) metal corrugated steel roofs. It employs a non-penetrating clamping structure, eliminating the need for drilling into the roof surface. The clamps secure themselves to the Klip-Lok edge of the roof ridge using their own mechanical locking force, providing a reliable connection point for PV rails or modules. This design avoids damage to the roof panels caused by drilling, effectively reducing the risk of roof leaks, and is particularly suitable for commercial and industrial roofs with high waterproofing requirements.

The "L-angle" (often called L-foot, L-shaped foot, or L-shaped support) in a color steel roof photovoltaic support system is a simple but indispensable metal connector responsible for reliably fixing the guide rails supporting the photovoltaic modules to the color steel roof. It has a right angle (L-shape) shape, a lightweight structure, and mainly serves as an anchoring element connecting the upper and lower parts of the structure.

The U-shaped track for photovoltaic (PV) mounting on corrugated steel roofs is a solar panel installation system specifically designed for corrugated steel roofs, widely used due to its high efficiency and reliability. It's called a "U-shaped track" because its cross-section resembles the letter "U," a design that ensures a balance between structural strength and ease of installation.

The adjustable front and rear support photovoltaic bracket for corrugated steel roofs is a solar panel support system specifically designed for installation on metal corrugated steel roofs. Its name comes from its unique front and rear support structure design—by adjusting the height difference between the front and rear supports, the tilt angle of the photovoltaic panels can be varied to adapt to different regional sunlight conditions, roof slopes, and load-bearing requirements.

The wave-shaped clamp is specifically designed for corrugated steel roof tiles. Its curved bottom surface conforms to the tile peaks, and it works with self-tapping screws to lock the purlins, ensuring a stable installation of the photovoltaic bracket. Made of aluminum alloy, it is weather-resistant, durable, and easy to install.

The aluminum alloy photovoltaic bracket - bidirectional ballast - is a non-penetrating fixed bracket system suitable for flat roof photovoltaic power stations. Utilizing a bidirectional ballast design, it stabilizes the photovoltaic array to the roof surface through counterweight modules (such as precast concrete blocks) placed on both the front and rear sides of the bracket. The entire system is constructed primarily of high-strength aluminum alloy, suitable for various flat roof structures such as concrete, asphalt, and roof rolls. No drilling or welding is required, allowing for photovoltaic system deployment without altering the original roof structure.

Designed specifically for flat roofs, this system utilizes high-strength aluminum alloy and a triangular stabilizing structure, and is pre-assembled at the factory. Secured by concrete ballast, it does not damage the roof and is compatible with various photovoltaic modules, making it a reliable base for flat roof power stations.

Flat roof photovoltaic bracket - unidirectional ballast (aluminum alloy) is a non-penetrating photovoltaic support system developed for flat roof scenarios. It uses aluminum alloy profiles as the main structure and fixes the bracket and photovoltaic modules to the roof through cement ballast blocks or concrete counterweights, without drilling holes in the roof or damaging the original structure.

Adjustable tripods are support structures specifically designed for flat-roof photovoltaic (PV) systems. They utilize the stabilizing principle of triangles to provide a tilt angle for the PV modules. This bracket can adjust the tilt angle according to different lighting conditions and roof layouts, helping to improve the power generation efficiency of the PV system. It is suitable for various types of concrete flat roofs, commercial building roofs, and industrial plant flat roofs.

For photovoltaic projects on flat concrete roofs, this ballast-type bracket, employing key stainless steel components, offers a fixing solution that balances installation efficiency and long-term reliability. The main body of the system is pre-assembled in the factory; on-site installation simply requires placing concrete blocks for fixation, completely eliminating the need for drilling holes in the roof. The stainless steel bolts, connectors, and other core components provide excellent corrosion resistance in humid, rainy, or coastal environments. The overall structure supports custom tilt angles of 10°, 15°, and 20° to flexibly adapt to the varying sunlight requirements of different regions. Whether for large-scale power plants in industrial and commercial buildings or small systems for private villas, this bracket enables rapid deployment of photovoltaic panels without altering the original roof structure.
