Solar Roof Mount

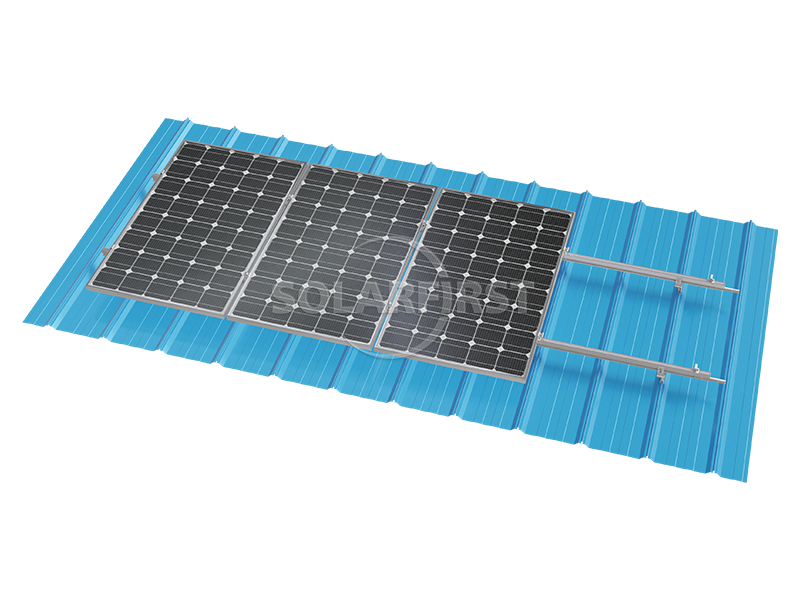

Angular Roof Clamps are non-perforated metal connectors specifically designed for angle-seam type corrugated steel roof photovoltaic power stations. They are fixed to the crests (angle-seam ribs) of the corrugated steel roof using a clamping method, providing a load-bearing base for installing photovoltaic rails or directly fixing photovoltaic modules. Compared to traditional drilling installations, this product fundamentally avoids the risk of leakage caused by drilling and damaging the roof's waterproof layer. It is a core component for achieving non-destructive, efficient, and safe installation in industrial and commercial distributed photovoltaic projects.

The Mini Rail with rail clamps is a non-penetrating photovoltaic (PV) installation system specifically designed for metal roofs. Its core feature is the replacement of traditional continuous long rails with short aluminum alloy rails (Mini Rails), which are then clamped and secured to the crests of the corrugated steel roof using specialized clamps, eliminating the need for drilling into the roof. This design avoids the risk of leaks associated with drilling, while providing a lightweight and stable support platform for the PV modules.

Trapezoidal clamps are key connectors used in photovoltaic projects with trapezoidal corrugated steel roofs. Their main function is to secure the photovoltaic bracket's guide rails to the corrugated steel roof, providing a reliable foundation for subsequent installation of photovoltaic modules.

In simple terms, a standing seam clamp is a "photovoltaic panel base connector" specifically designed for non-penetrating corrugated steel roofs. It is fixed to the standing seam of the roof by clamping, allowing the photovoltaic modules to be installed securely without drilling a single hole in the roof.

This product is a photovoltaic (PV) bracket accessory specifically designed for Klip-Lok (standing seam) metal corrugated steel roofs. It employs a non-penetrating clamping structure, eliminating the need for drilling into the roof surface. The clamps secure themselves to the Klip-Lok edge of the roof ridge using their own mechanical locking force, providing a reliable connection point for PV rails or modules. This design avoids damage to the roof panels caused by drilling, effectively reducing the risk of roof leaks, and is particularly suitable for commercial and industrial roofs with high waterproofing requirements.

The "L-angle" (often called L-foot, L-shaped foot, or L-shaped support) in a color steel roof photovoltaic support system is a simple but indispensable metal connector responsible for reliably fixing the guide rails supporting the photovoltaic modules to the color steel roof. It has a right angle (L-shape) shape, a lightweight structure, and mainly serves as an anchoring element connecting the upper and lower parts of the structure.

The U-shaped track for photovoltaic (PV) mounting on corrugated steel roofs is a solar panel installation system specifically designed for corrugated steel roofs, widely used due to its high efficiency and reliability. It's called a "U-shaped track" because its cross-section resembles the letter "U," a design that ensures a balance between structural strength and ease of installation.

The adjustable front and rear support photovoltaic bracket for corrugated steel roofs is a solar panel support system specifically designed for installation on metal corrugated steel roofs. Its name comes from its unique front and rear support structure design—by adjusting the height difference between the front and rear supports, the tilt angle of the photovoltaic panels can be varied to adapt to different regional sunlight conditions, roof slopes, and load-bearing requirements.

The wave-shaped clamp is specifically designed for corrugated steel roof tiles. Its curved bottom surface conforms to the tile peaks, and it works with self-tapping screws to lock the purlins, ensuring a stable installation of the photovoltaic bracket. Made of aluminum alloy, it is weather-resistant, durable, and easy to install.

When choosing solar panels for residential and small villa balconies, a key trend is now towards "lightweight, integrated, and plug-and-play solutions," rather than simply purchasing separate brackets. These products are becoming increasingly popular with families due to the convenience of "solar appliances."

For photovoltaic projects on flat concrete roofs, this ballast-type bracket, employing key stainless steel components, offers a fixing solution that balances installation efficiency and long-term reliability. The main body of the system is pre-assembled in the factory; on-site installation simply requires placing concrete blocks for fixation, completely eliminating the need for drilling holes in the roof. The stainless steel bolts, connectors, and other core components provide excellent corrosion resistance in humid, rainy, or coastal environments. The overall structure supports custom tilt angles of 10°, 15°, and 20° to flexibly adapt to the varying sunlight requirements of different regions. Whether for large-scale power plants in industrial and commercial buildings or small systems for private villas, this bracket enables rapid deployment of photovoltaic panels without altering the original roof structure.

Adjustable tripods are support structures specifically designed for flat-roof photovoltaic (PV) systems. They utilize the stabilizing principle of triangles to provide a tilt angle for the PV modules. This bracket can adjust the tilt angle according to different lighting conditions and roof layouts, helping to improve the power generation efficiency of the PV system. It is suitable for various types of concrete flat roofs, commercial building roofs, and industrial plant flat roofs.
